Place of Origin:
original
Brand Name:
Intel/Altera
Model Number:

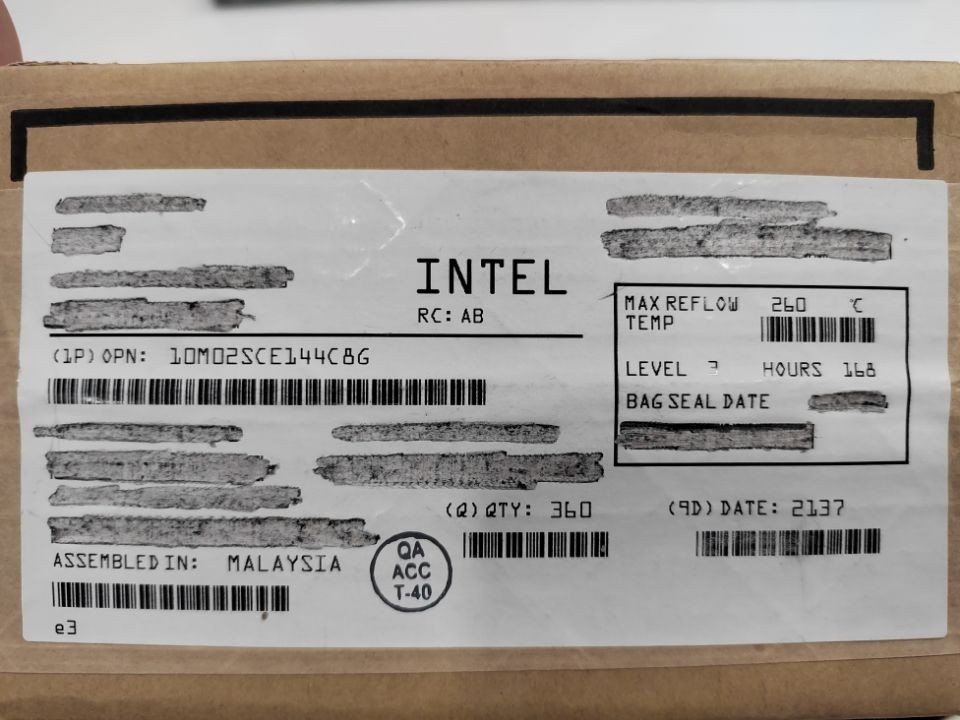

10M02SCE144C8G
Contact Us
| Product Technical Specifications | |
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| Automotive | No |
| PPAP | No |
| Family Name | MAX 10 |
| Process Technology | 55nm |
| User I/Os | 101 |
| Operating Supply Voltage (V) | 1.2 |
| Shift Registers | Utilize Memory |
| Logic Elements | 2000 |
| Number of Multipliers | 16 (18x18) |
| Program Memory Type | SRAM |
| Embedded Memory (Kbit) | 108 |
| Device Logic Units | 2000 |
| Number of Global Clocks | 20 |
| Device Number of DLLs/PLLs | 2 |
| JTAG Support | Yes |
| Dedicated DSP | 16 |
| Programmability | Yes |
| Reprogrammability Support | Yes |
| Number of Look-up Table Input | 4 |
| Copy Protection | No |
| In-System Programmability | Yes |
| Speed Grade | 8 |
| Differential I/O Standards | HSUL|SSTL|LVDS |
| External Memory Interface | DDR3L SDRAM|DDR3 SDRAM|LPDDR2 SDRAM|DDR2 SDRAM |
| Minimum Operating Supply Voltage (V) | 1.15 |
| Maximum Operating Supply Voltage (V) | 1.25 |
| I/O Voltage (V) | 3.3|3|2.5|1.8|1.5|1.35|1.2 |
| Minimum Operating Temperature (C) | 0 |
| Maximum Operating Temperature (C) | 85 |
| Supplier Temperature Grade | Commercial |
| Packaging | Tray |
| Tradename | MAX® 10 |
| Mounting | Surface Mount |
| Package Height | 1.45 |
| Package Width | 20 |
| Package Length | 20 |
| PCB changed | 144 |
| Standard Package Name | QFP |
| Supplier Package | EQFP EP |
| Pin Count | 144 |
| Lead Shape | Gull-wing |
