Place of Origin:
original
Brand Name:
Intel/Altera
Model Number:

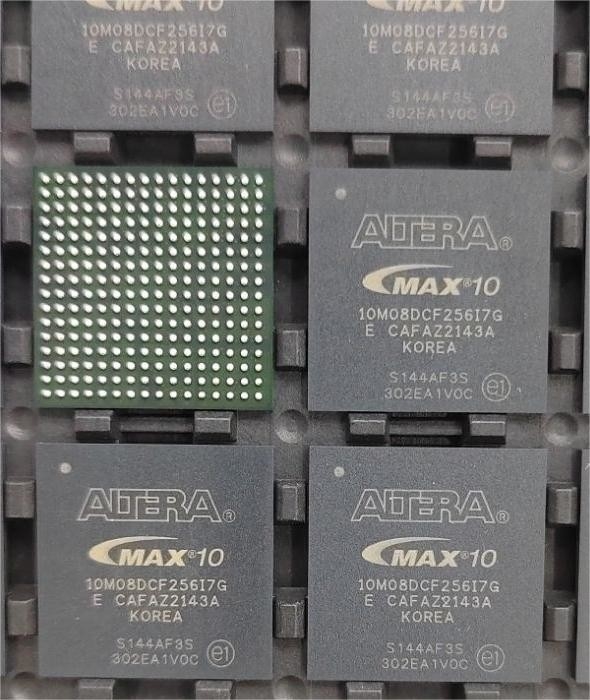

10M08DCF256I7G
Contact Us
| Product Technical Specifications | |
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.39.00.01 |
| Automotive | No |
| PPAP | No |
| Family Name | MAX 10 |
| Process Technology | 55nm |
| User I/Os | 178 |
| Operating Supply Voltage (V) | 1.2 |
| Shift Registers | Utilize Memory |
| Logic Elements | 8000 |
| Number of Multipliers | 24 (18x18) |
| Program Memory Type | SRAM |
| Embedded Memory (Kbit) | 378 |
| Device Logic Units | 8000 |
| Number of Global Clocks | 20 |
| Device Number of DLLs/PLLs | 2 |
| JTAG Support | Yes |
| Dedicated DSP | 24 |
| Programmability | Yes |
| Reprogrammability Support | Yes |
| Number of Look-up Table Input | 4 |
| Copy Protection | No |
| In-System Programmability | Yes |
| Speed Grade | 7 |
| Differential I/O Standards | HSUL|SSTL|LVDS |
| External Memory Interface | DDR3L SDRAM|DDR3 SDRAM|LPDDR2 SDRAM|DDR2 SDRAM |
| Minimum Operating Supply Voltage (V) | 1.15 |
| Maximum Operating Supply Voltage (V) | 1.25 |
| I/O Voltage (V) | 3.3|3|2.5|1.8|1.5|1.35|1.2 |
| Minimum Operating Temperature (C) | -40 |
| Maximum Operating Temperature (C) | 100 |
| Supplier Temperature Grade | Industrial |
| Packaging | Tray |
| Tradename | MAX® 10 |
| Mounting | Surface Mount |
| Package Height | 1.05 |
| Package Width | 17 |
| Package Length | 17 |
| PCB changed | 256 |
| Standard Package Name | BGA |
| Supplier Package | FBGA |
| Pin Count | 256 |
| Lead Shape | Ball |
