Place of Origin:
original
Model Number:
HMC451LC3
Contact Us
| Product Technical Specifications | |
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.33.00.01 |
| Automotive | No |
| PPAP | No |
| Manufacturer Type | Low Noise Amplifier |
| Number of Channels per Chip | 1 |
| Maximum Operating Frequency (MHz) | 20000 |
| Typical Power Gain (dB) | 17@20000MHz |
| Typical Output Power (dBm) | 19.5@20000MHz |
| Typical Output Intercept Point (dBm) | 29@20000MHz |
| Maximum Input Return Loss (dB) | 12(Typ)@20000MHz |
| Maximum Output Return Loss (dB) | 8(Typ)@20000MHz |
| Typical Noise Figure (dB) | 7@20000MHz |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Typical Single Supply Voltage (V) | 5 |
| Maximum Single Supply Voltage (V) | 5.5 |
| Maximum Supply Current (mA) | 114(Typ)@5V |
| Power Supply Type | Single |
| Maximum Power Dissipation (mW) | 1100 |
| Minimum Operating Temperature (C) | -40 |
| Maximum Operating Temperature (C) | 85 |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height | 0.8 |
| Package Width | 2.9 |
| Package Length | 2.9 |
| PCB changed | 16 |
| Supplier Package | CLLCC EP |
| Pin Count | 16 |

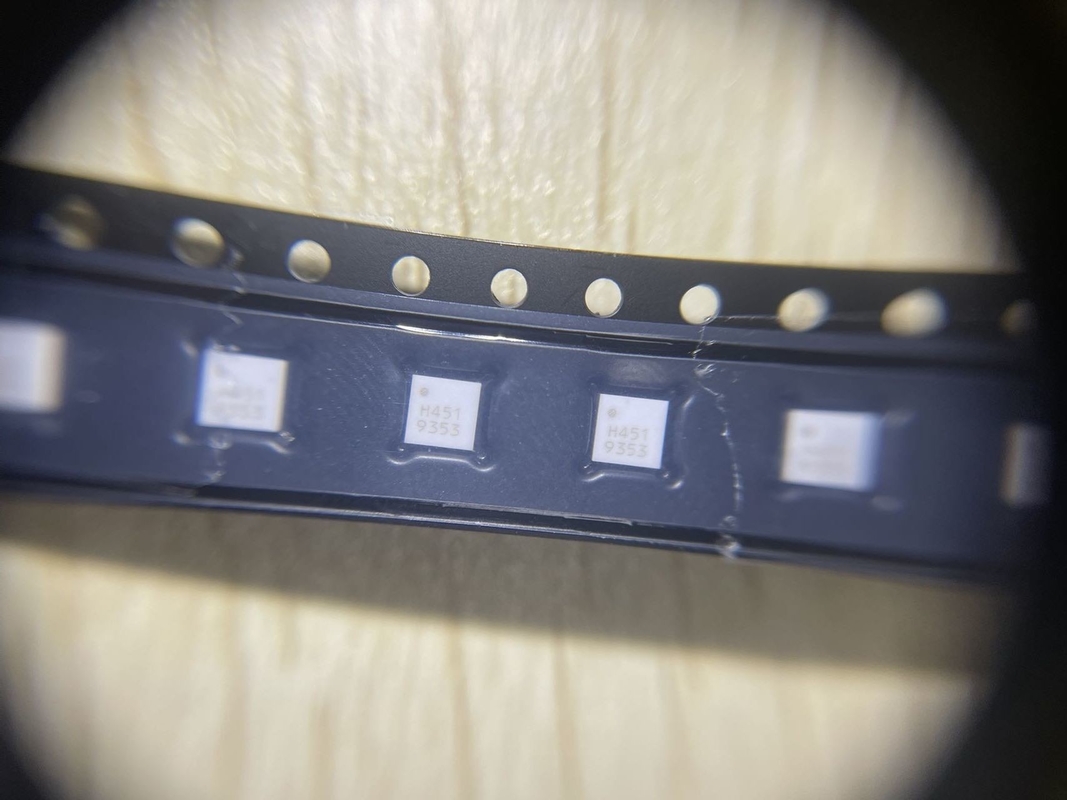

Make sure RF signals are retrievable from your device by implementing this general purpose amplifier HMC451LC3 buffer amplifier from Analog Devices. Its maximum power dissipation is 1100 mW. This RF amplifier chip has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a single channel per chip. This device uses a single power supply.
