TL431IDBZ SOT23-3 Integrated Circuit New And Original

TL431IDBZ SOT23-3 Integrated Circuit New And Original

TL431IDBZ Ic Integrated Circuit

TL431IDBZ Ic Chip

SOT23-3 Package Integrated Circuit

Place of Origin:

original

Brand Name:

TI

Model Number:

TL431IDBZ

Contact Us

Request A Quote
Product Details
Quality::
Brand New Unused
Package / Box::
SOT23-3
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiate

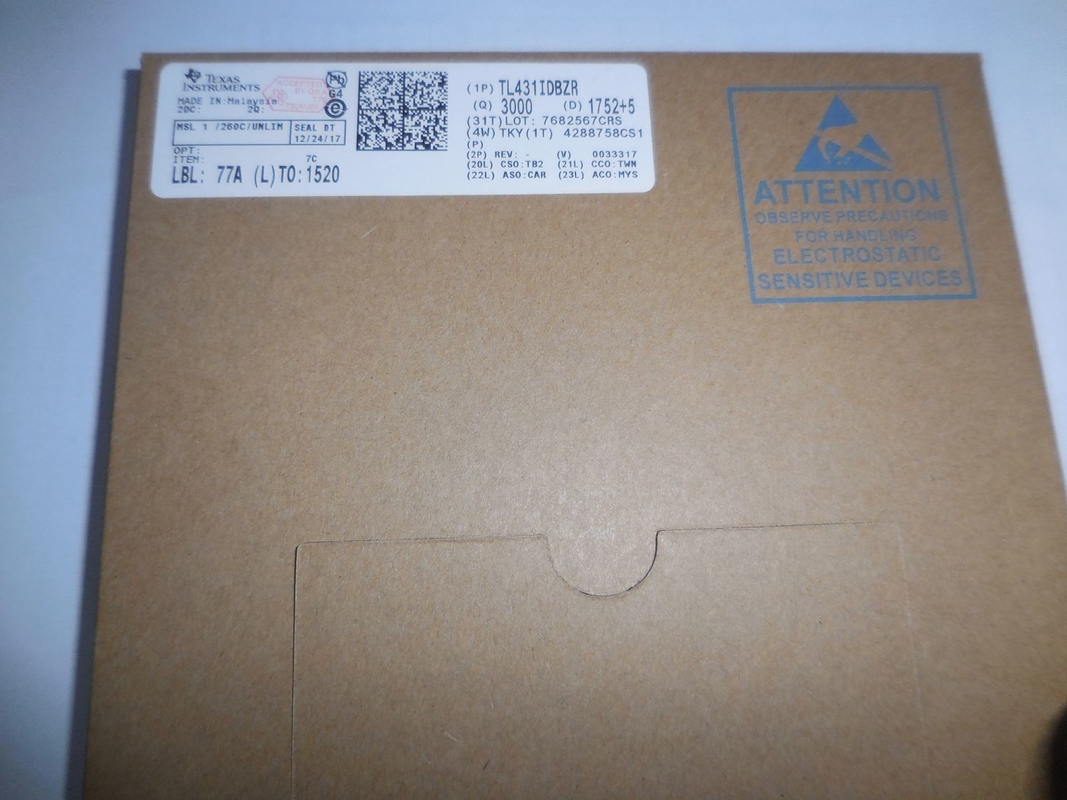

Packaging Details
3000
Delivery Time
3
Stock
8000+
Supply Ability
47830pcs
Product Description

ISO9001.pdf

Even in the event of large power supply variations, this TL431IDBZR voltage reference power management device can produce and maintain a precise DC voltage. It has an initial accuracy of 2%. Supply your circuit with sufficient power by implementing this, which does not exceed 37 V. With an output that has a voltage of 2.495 to 36 V, this is power management at its best. This voltage reference circuit supports shunt topology. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It runs with a maximum temperature coefficient of 34ppm/°C(Typ). This voltage reference circuit has a minimum operating temperature of -40 °C and a maximum of 85 °C.

EU RoHS Compliant
ECCN (US) EAR99
Part Status Active
HTS 8542.39.00.01
Automotive No
PPAP No
Reference Type Adjustable
Topology Shunt
Initial Accuracy 2%
Maximum Temperature Coefficient 92ppm/C
Output Voltage (V) 2.495 to 36
Maximum Input Voltage (V) 37
Maximum Output Current (mA) 100
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85

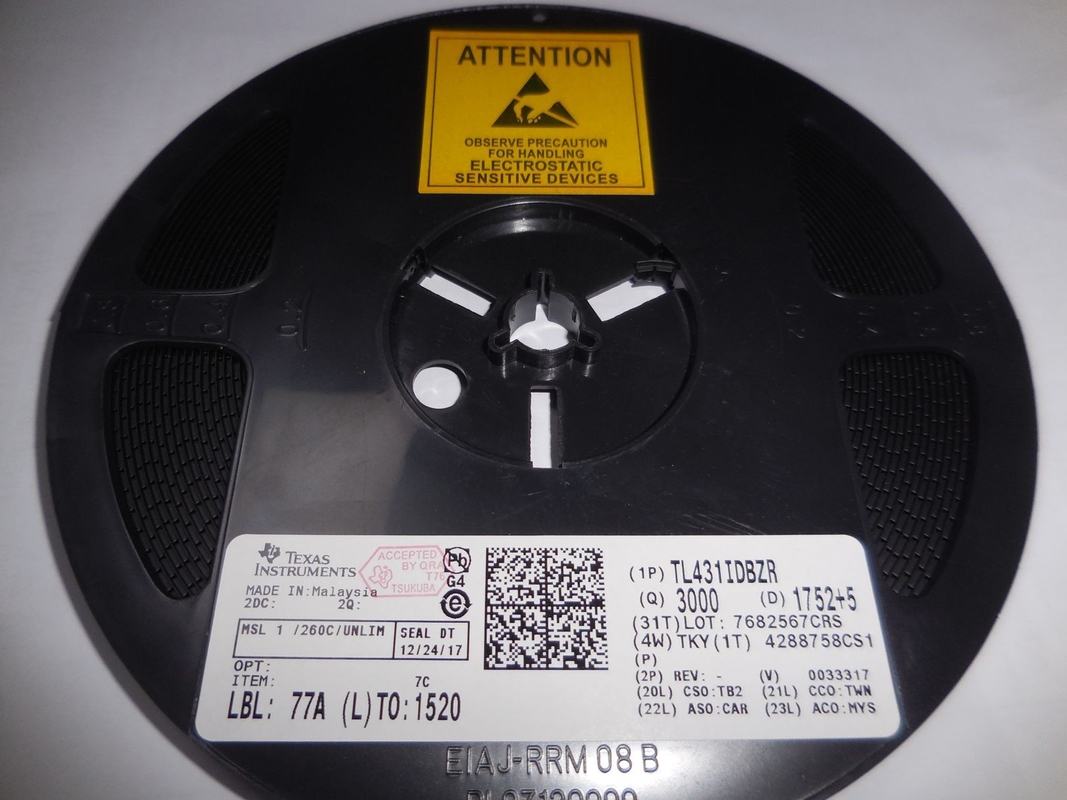

Packaging Tape and Reel
Mounting Surface Mount
Package Height 0.95
Package Width 1.4(Max)
Package Length 3.04(Max)
PCB changed 3
Standard Package Name SOT
Supplier Package SOT-23
Pin Count 3
Lead Shape Gull-wing
