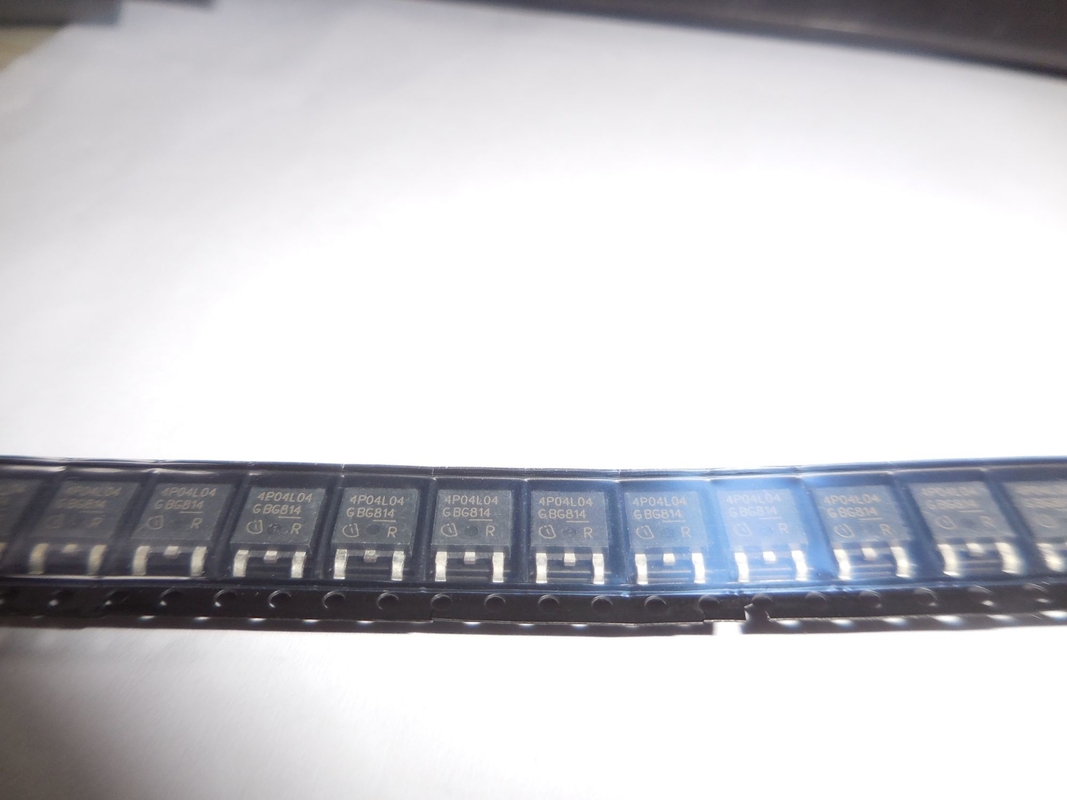

IPD90P04P4L-04 TO-252 Ic Integrated Circuit In Motor Drivers

IPD90P04P4L-04 TO-252 Ic Integrated Circuit In Motor Drivers

IPD90P04P4L-04 Ic Integrated Circuit

Motor Drivers Ic Integrated Circuit

IPD90P04P4L-04 Integrated Circuit Ic Chip

Place of Origin:

original

Brand Name:

INFINEON

Model Number:

IPD90P04P4L-04

Contact Us

Request A Quote
IPD90P04P4L-04 TO-252 Ic Integrated Circuit In Motor Drivers
IPD90P04P4L-04 TO-252 Ic Integrated Circuit In Motor Drivers
Product Details
Quality：:
Brand New Unused
Package / Box::
TO-252
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiate
Packaging Details
4000
Delivery Time
3
Stock
8000+
Payment Terms
D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
97830pcs
RELATED PRODUCTS
Good price BSP613PH6327 SOT223 Integrated Circuit Ic Chip online Video

BSP613PH6327 SOT223 Integrated Circuit Ic Chip

Get Best Price
Good price IPD100N04S402ATMA1 Integrated Power Ic TO-252 online Video

IPD100N04S402ATMA1 Integrated Power Ic TO-252

Get Best Price
Good price IPD320N20N3G Ic Integrated Circuit TO-252 online Video

IPD320N20N3G Ic Integrated Circuit TO-252

Get Best Price
Good price IPD90P04P4L-04 TO-252 Ic Integrated Circuit In Motor Drivers online Video

IPD90P04P4L-04 TO-252 Ic Integrated Circuit In Motor Drivers

Get Best Price
Contact Us
+8613380499166
kezhiwei@lianyixinic.com
Contact Now
Product Description

ISO9001.pdf

Application:
IPD90P04P4L-04 can be used in switching mode power supplies, motor drivers, and other high current load switching circuits.
Conclusion:
IPD90P04P4L-04 has low conduction resistance and high switching speed, which can reduce power consumption and improve efficiency.
This transistor can withstand high voltage and high current, and has good thermal stability.
Parameters:
Rated current: 90A
Rated voltage: 40V
Conduction resistance: 3.6m Ω
Switching time: 50ns
Subelectrode capacitance: 2700pF
Thermal resistance: 0.52 ℃/W
Packaging form: TO-252 (DPAK)

Product Technical Specifications

EU RoHS Compliant with Exemption聽
ECCN (US) EAR99
Part Status Unconfirmed
SVHC Yes
SVHC Exceeds Threshold Yes
Automotive Yes
PPAP Unknown
Product Category Power MOSFET
Configuration Single
Process Technology OptiMOS
Channel Mode Enhancement
Channel Type P
Number of Elements per Chip 1
Maximum Drain Source Voltage (V) 40
Maximum Gate Source Voltage (V) 卤16
Maximum Continuous Drain Current (A) 90
Maximum Drain Source Resistance (MOhm) 4.3@10V
Typical Gate Charge @ Vgs (nC) 135@10V
Typical Gate Charge @ 10V (nC) 135
Typical Input Capacitance @ Vds (pF) 8900@25V
Maximum Power Dissipation (mW) 125000
Typical Fall Time (ns) 60
Typical Rise Time (ns) 20
Typical Turn-Off Delay Time (ns) 140
Typical Turn-On Delay Time (ns) 20
Minimum Operating Temperature (掳C) -55
Maximum Operating Temperature (掳C) 175
Supplier Temperature Grade Automotive
Packaging Tape and Reel
Mounting Surface Mount
Package Height 2.3
Package Width 6.22
Package Length 6.5
PCB changed 2
Tab Tab
Standard Package Name TO-252
Supplier Package DPAK
Pin Count 3
